705-51-20A20
- Specification
- Product Description
- Product Scenario
- Product Advantage
| Model | Displacement (cm3/rev.) |
Max. Pressure (kg/cm2) |
Rated Pressure (kg/cm2) |
Speed (r.p.m.) |
|
|---|---|---|---|---|---|
| Max. | Min. | ||||
| SAL2-50 | 50.1 | 250 | 210 | 3000 | 800 |
| SAL2-45 | 43.7 | ||||

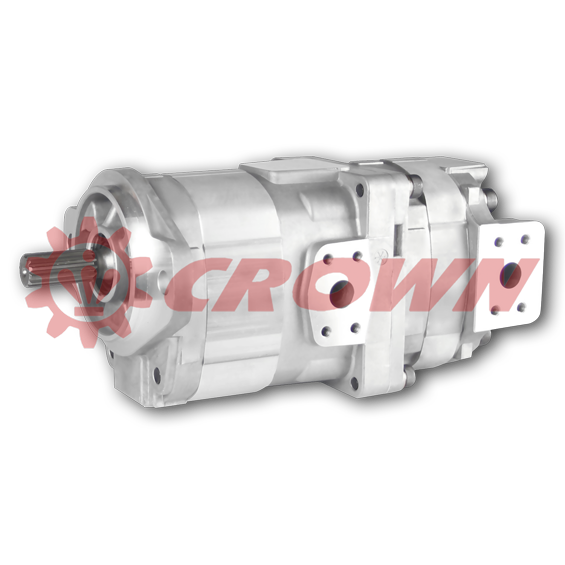

- Part Number: 705-51-20A20

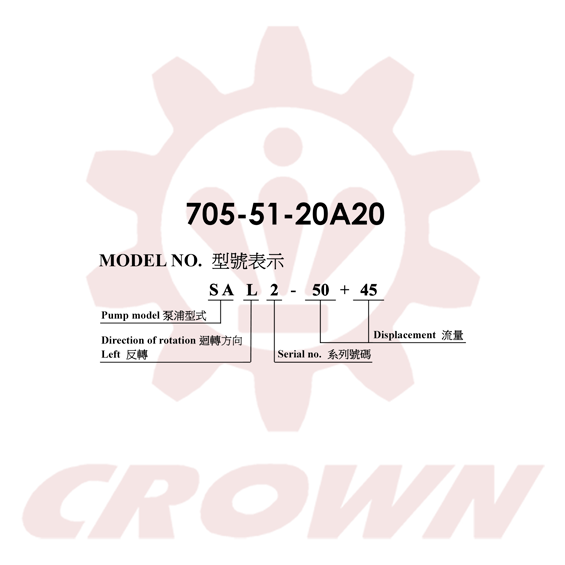

- Model: SAL2-50+45
- Displacement (Section 1): 50.1 cm³/rev (SAL2-50)
- Displacement (Section 2): 43.7 cm³/rev (SAL2-45)
- Maximum Pressure: 250 kg/cm²
- Rated Pressure: 210 kg/cm²
- Speed Range: 800 - 3000 RPM
- Origin: Taiwan (Manufactured by Hung Rong Hydraulic Tech. Co., Ltd.)
- Target Machinery: Engineered for heavy-duty Komatsu construction equipment requiring reliable dual-circuit hydraulic power.
- Target Applications: Ideal for excavators and wheel loaders where simultaneous hydraulic functions demand precise flow delivery.
- Operational Need: Enables independent and simultaneous control of multiple hydraulic circuits within a single compact unit.
- Dual-Circuit Control: The dual-pump configuration allows for highly efficient and independent management of multiple hydraulic systems simultaneously.
- OEM-Matched Specifications: Built to exact OEM technical parameters, ensuring seamless direct compatibility and minimizing installation complexity.
- High-Pressure Durability: Exceptional peak pressure capability and a wide operational speed range guarantee dependable stability under harsh working conditions.
- R&D Quality Assurance: Sourced from a specialized Taiwan manufacturer with proven R&D expertise, delivering consistent performance and extended service life.
