Applicable to :

WA600-3, WA600-3D

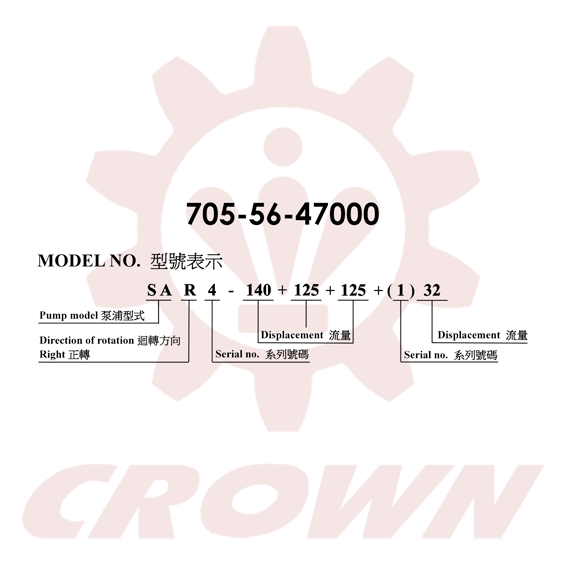

• Model: SAR4-140+125+125+(1)32

• Part Number: 705-56-47000

• Displacement Rates: Delivers precise volume outputs of 142.0, 125.1, 125.1, and 32.6 cm³/rev across its four sections, respectively.

• Pressure Limits: Operates at a rated pressure of 210 kg/cm² with a maximum peak of 250 kg/cm² for the primary sections.

• Speed Range: Supports operational speeds from 600 to 2200 rpm.

• Target Equipment: Specifically custom-engineered for Komatsu WA600-3 and WA600-3D wheel loaders.

• System Application: Serves as a direct-fit replacement for primary hydraulic systems in heavy-duty construction and mining applications.

• Multi-Circuit Demand: Engineered to deliver simultaneous hydraulic flow to multiple circuits, supporting the high-demand operations typical of large wheel loader work cycles.

• Flow Distribution: Consolidates multiple complex flow demands into a single pump assembly to reduce overall system complexity on heavy equipment.

• Quad-Section High Efficiency: Advanced four-section configuration maximizes hydraulic output efficiency to support independent circuits simultaneously without power drops.

• Seamless Installation: 100% direct-fit design eliminates physical alignment risks and simplifies routine maintenance replacements for fleet operations.

• Consistent Pressure Output: Robust design and precise manufacturing ensure stable pressure delivery and durability under sustained loads in demanding industrial environments.

• Consolidated Compact Assembly: Reduces system layout complexity and minimizes potential leak points compared to separate pump setups.

• Proven Taiwan R&D Reliability: Backed by an established Taiwan-based hydraulic technology supplier, providing buyers with verified spec-matched components and trusted technical support.
