* The speed (r.p.m.) of the rear section depends on the speed (r.p.m.) of the first section

Applicable to :

HD605-5, HD605-7, HD465-7, HD465-5

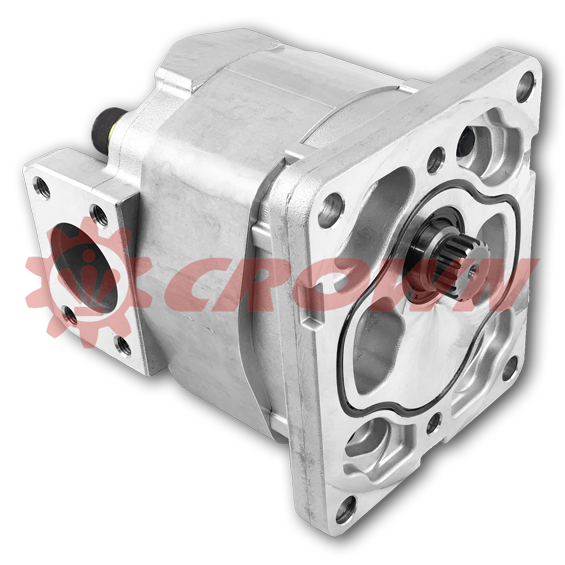

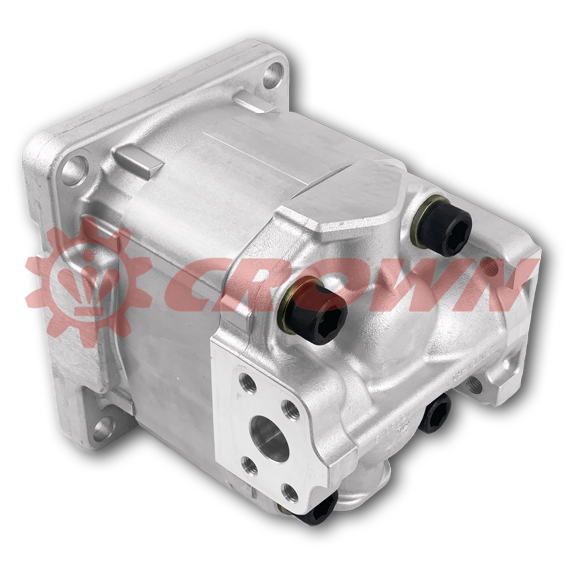

• Part Number: 705-22-40040

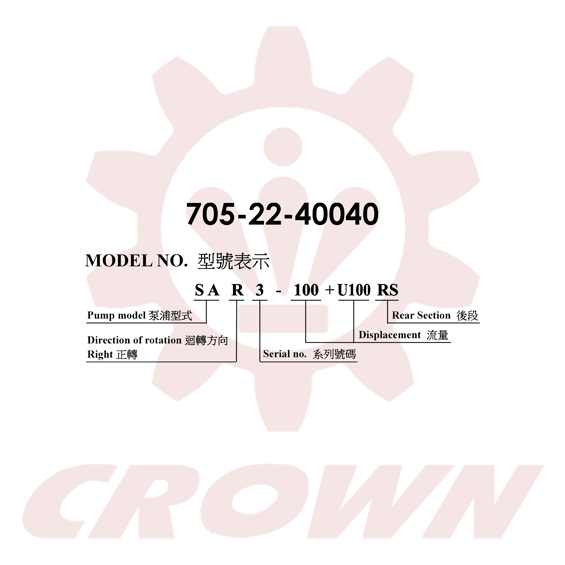

• Model: SAR3-100+U100 RS (Rear Section)

• Displacement: 100.5 cm³/rev

• Rated Pressure: 210 kg/cm²

• Maximum Operating Pressure: 250 kg/cm²

• Speed Range: Synchronized with the front section for optimal system performance

• Manufacturer: Hung Rong Hydraulic Tech. Co., Ltd.

• Komatsu Equipment: Precision-matched for HD605-5, HD605-7, HD465-7, and HD465-5 series dump trucks.

• System Functions: Operates as a heavy-duty rear component, ensuring reliable hydraulic power transmission for continuous fluid flow and pressure.

• Work Environments: Engineered for demanding conditions in mining, large-scale construction, and challenging earthmoving operations.

• Applications: Ideal for routine fleet maintenance and direct OEM replacement programs to sustain operational efficiency and maximize equipment uptime.

• Replacement: 100% precision-engineered to meet stringent Komatsu OEM specifications, offering an exact displacement match of 100.5 cm³/rev for seamless integration.

• Taiwan-Made Quality: Manufactured by Hung Rong Hydraulic Tech. Co., Ltd. in Taiwan, leveraging decades of hydraulic expertise and rigorous quality control standards.

• Heavy-Duty Reliability: Sustains highly reliable performance under rated pressures of 210 kg/cm² and maximum pressure tolerances up to 250 kg/cm² in challenging industrial environments.

• Extended Service Life: Outperforms standard aftermarket alternatives by delivering superior durability and operational efficiency, significantly reducing downtime for critical machinery.
