705-51-30290

BRAND

KOMATSU

PART NO

705-51-30290

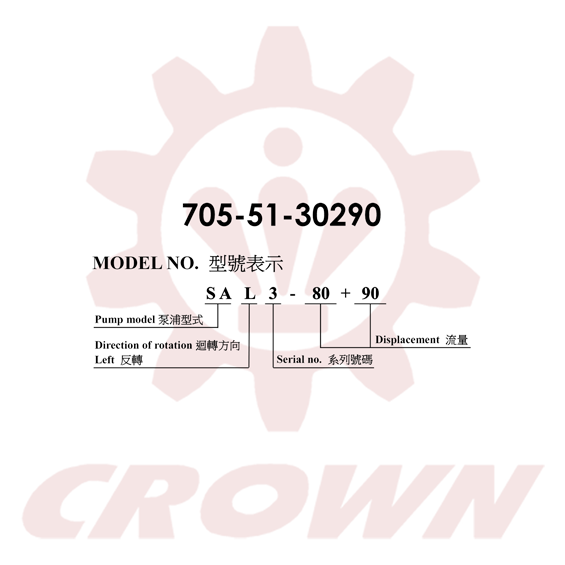

MODEL NO

SAL3-80+90

Q'TY

Specification
Description

Model	Displacement (cm³/rev.)	Max. Pressure (kg/cm²)	Rated Pressure (kg/cm²)	Speed (r.p.m.)
Model	Displacement (cm³/rev.)	Max. Pressure (kg/cm²)	Rated Pressure (kg/cm²)	Max.	Min.
SA3-80	80.0	250	210	2500	600
SA3-90	90.7	250	210	2500	600

Applicable to :

D155AX-5, D155A-3, D155A-5
