705-52-30490

BRAND

KOMATSU

PART NO

705-52-30490

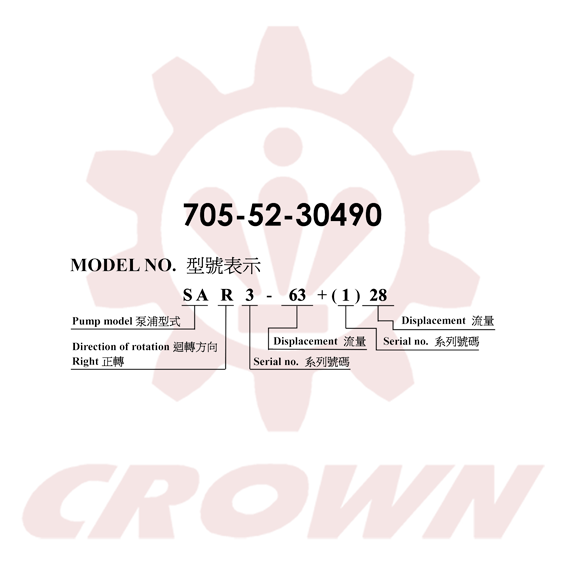

MODEL NO

SAR3-63+(1)28

Q'TY

Specification
Description

Model	Displacement (cm³/rev.)	Max. Pressure (kg/cm²)	Rated Pressure (kg/cm²)	Speed (r.p.m.)
Model	Displacement (cm³/rev.)	Max. Pressure (kg/cm²)	Rated Pressure (kg/cm²)	Max.	Min.
SA3-63	63.1	250	210	2500	600
SA1-28	28.7	250	210	2500	600

Applicable to :

WA500-3, WF550T-3, WF550T-3D, WA500-3H, WF550T-3A, WF550-3D, WA500-3LK, WA500-3L
